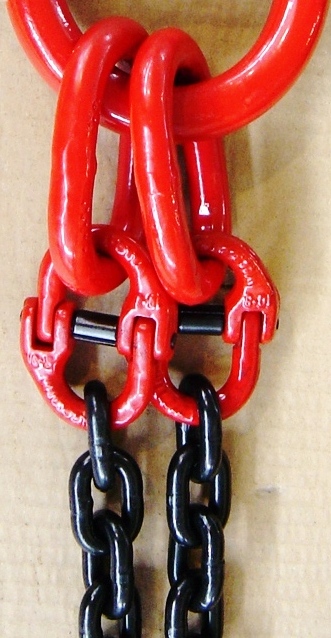

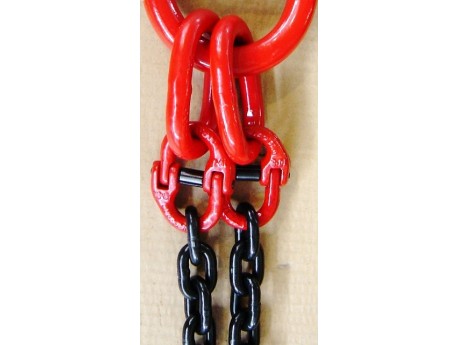

名称：G80 Chain Slings索具
点击数：2175
录入时间：2010-11-16 18:11:46
详细介绍
Grade 80 alloy chain slings are often selected when operating under high temperature or rigged conditions that would abrade or destroy other types of slings. They are flexible, durable, long lasting, ductile, easy to inspect, collapsible for convenient storage, and will adhere securely to the contours of a load. The most advantageous feature of a chain sling is its ability to be repaired/ Nearly any damaged component discovered during an inspection can be repaired and restores to useful condition。
G-80 SLING CHAIN
|
ITEM NO.
|
Size
|
Width (mm)
|
Approx Weight
|
Working Load
Limit
|
Test Load
|
Breaking Load
min.
|
|
Dia. x Pitch
|
Inside min.
|
Outside max.
|
|
mm
|
a
|
b
|
kg/m
|
t
|
kN
|
kN
|
|
G8S0618
|
6x18
|
7.5
|
21
|
0.79
|
1.12
|
27
|
45.2
|
|
G8S0721
|
7x21
|
9
|
24.5
|
1.07
|
1.5
|
37
|
61.6
|
|
G8S0824
|
8x24
|
10
|
28
|
1.38
|
2.0
|
48
|
80.4
|
|
G8S1030
|
10x30
|
12.5
|
35
|
2.20
|
3.15
|
76
|
125
|
|
G8S1339
|
13x39
|
16.3
|
46
|
3.80
|
5.3
|
128
|
214
|
|
G8S1648
|
16x48
|
20
|
56
|
5.63
|
8.0
|
192
|
320
|
|
G8S2060
|
20x60
|
25
|
70
|
8.60
|
12.5
|
300
|
500
|
|
G8S2266
|
22x66
|
28
|
77
|
10.20
|
15.0
|
366
|
610
|
|
G8S2678
|
26x78
|
35
|
91
|
14.87
|
21.2
|
510
|
850
|
|
G8S3296
|
32x96
|
40
|
106
|
22.29
|
31.5
|
772
|
128
|
G-80 HOIST CHAIN
|
ITEM NO.
|
G8H0412
|
G8H0515
|
G8H0618
|
G8H0721
|
G8H0824
|
G8H0927
|
G8H1030
|
|
Dia.(mm)
|
NOMINAL
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|
-Tolerance
|
-0.08
|
-0.10
|
-0.12
|
-0.14
|
-0.16
|
-0.18
|
-0.2
|
|
Pitch(mm)
|
NOMINAL
|
12
|
15
|
18
|
21
|
24
|
27
|
30
|
|
+Tolerance
|
+ 0.23
|
+ 0.29
|
+ 0.35
|
+ 0.41
|
+ 0.46
|
+ 0.52
|
+ 0.58
|
|
L(11xP)mm
|
NOMINAL
|
132
|
165.
|
198
|
231
|
264
|
297
|
330
|
|
+Tolerance
|
+ 0.628
|
+ 0.785
|
+ 0.941
|
+ 1.098
|
+ 1.255
|
+ 1.412
|
+ 1.569
|
|
Outside Width(mm)
|
NOMINAL
|
13
|
17
|
20
|
23
|
26
|
30
|
33
|
|
+Tolerance
|
+ 0.30
|
+ 0.38
|
+ 0.45
|
+ 0.54
|
+ 0.60
|
+ 0.68
|
+ 0.75
|
|
Inside Width( W1)(mm)
|
5
|
6.3
|
7.50
|
8.875
|
10.00
|
11.25
|
12.50
|
|
Proof
Test Min
|
KN
|
10.1
|
15.80
|
22.7 0
|
31.70
|
40.30
|
51
|
63.00
|
|
Breaking
Load Min.
|
KN
|
20.2
|
31.6
|
45.4
|
63.4
|
80.6
|
102
|
126
|
|
Elongation
|
when breaking
|
>10%
|
>10%
|
>10%
|
>10%
|
>10%
|
>10%
|
>10%
|
G-80 LASHING CHAIN
|
ITEM NO
|
CHAIN
SIZE
|
LINK DIMENSION
|
TEST
LOAD
|
BREAKING
LOAD Min.
|
WEIGHT
PER M
|
|
S
|
R
|
F
|
|
MM
|
MM
|
MM
|
MM
|
KN
|
KN
|
KG
|
|
G8L0635
|
6
|
6
|
35
|
22
|
22
|
44
|
0.64
|
|
G8L0953
|
9
|
9
|
53
|
33
|
49
|
98
|
1.42
|
|
G8L1164
|
11
|
11
|
64
|
40
|
73.5
|
147
|
2.18
|
|
G8L1380
|
13
|
13
|
80
|
48
|
95
|
190
|
3.01
|
